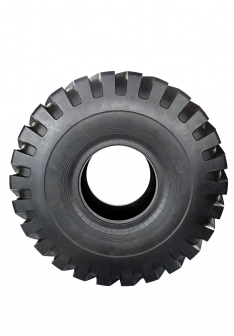

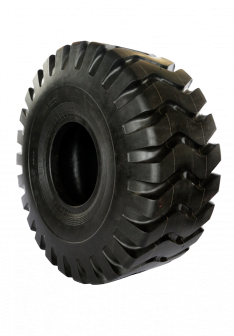

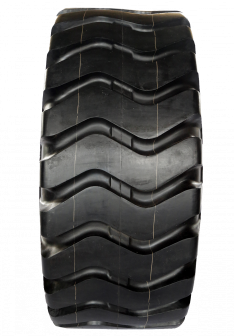

Wheel Loader Tyre E3/L3

13.00-24 14.00-24 14.00-25 16.00-24 16.00-25 18.00-24 18.00-25 15.5-25 17.5-25 20.5-25 23.5-25 26.5-25 29.5-25 29.5-29 16/70-20 16/70-24 20.5/70-16 23.5/70-16

    Features:

  • 1. Cheap Price
  • 2. Good Quality
  • 3. Strong Carcass
  • 4. Tread Wear Resistance

Suitable Conditions:

Suitable for the loader,dozer,earthmover,grader,scraper,dump trucks

Description

1) Applicable to the Loader,Dozer,Earthmover,Grader,Scraper operating under the relatively severe conditions

2) Aggressive,durable lug design,non-directional tread design and wide base construction,which can provide high flotation,excellenl traction,improved stability and reduced groundpressure.

3) The specially-formuiated synthetic rubber compound can offer excellent cutting and heat resistance and help to prevent sidewall cracking.

Data table



SizePly-ratingRimTube TypeS.W.(mm)O.D.(mm)Max.Load(kg) 10km/h*50km/h Inflation Pressure(kpa) 10km/h*50km/h
13.00-241210.00TT/TL35013505600*3000450*300
14.00-241610.00TT/TL37513707300*4000550*375
2010.00TT/TL37513708500*4625700*475
2410.00TT/TL37513709500*5150850*575
2810.00TT/TL375137010000*5600925*650
3210.00TT/TL375137010900*61501050*750
14.00-251610.00/1.5TT/TL37513707300*4000550*375
2010.00/1.5TT/TL37513708500*4625700*475
2410.00/1.5TT/TL37513709500*5150850*575
2810.00/1.5TT/TL375137010000*5600925*850
3210.00/1.5TT/TL375137010500*60001000*725
16.00-242411.25/2.0TT/TL430149010600*6000650*475
2811.25/2.0TT/TL430149011500*6700750*575
3211.25/2.0TT/TL430149012500*7300875*650
16.00-252411.25/2.0TT/TL430149010600*6000650*475
2811.25/2.0TT/TL430149011500*6700750*575
3211.25/2.0TT/TL430149012500*7300875*650
18.00-242413.00/2.5TT/TL520162512500*7300550*425
2813.00/2.5TT/TL520162513600*8000650*500
3213.00/2.5TT/TL520162515000*8750750*575
3613.00/2.5TT/TL520162516000*9250850*625
4013.00/2.5TT/TL520162517000*9700950*700
18.00-252413.00/2.5TT/TL520162512500*7300550*425
2813.00/2.5TT/TL520162513600*8000650*500
3213.00/2.5TT/TL520162515000*8750750*575
3613.00/2.5TT/TL520162516000*9250850*625
4013.00/2.5TT/TL520162517000*9700950*700
15.5-251212.00/1.3TT/TL39512755600*3250400*250
1612.00/1.3TT/TL39512756500*3750525*325
17.5-251614.00/1.5TT/TL44513507300*4250475*300
2014.00/1.5TT/TL44513508250*5000575*400
2414.00/1.5TT/TL44513509250*5600700*475
20.5-251617.00/2.0TT/TL52014878250*5450350*275
2017.00/2.0TT/TL52014879500*5000450*325
2417.00/2.0TT/TL520148710300*6700525*400
23.5-251619.50/2.5TT/TL59516159500*6150300*225
2019.50/2.5TT/TL595161510900*7300375*300
2419.50/2.5TT/TL595161512500*8000475*350
2819.50/2.5TT/TL595161513600*8750550*400
26.5-252422.00/3.0TL675175014000*9250400*300
2822.00/3.0TL675175015500*10000475*350
3222.00/3.0TL675175017000*11200550*425
29.5-252825.00/3.5TL750187517500*11500425*325
3425.00/3.5TL750187520000*12950525*400
29.5-292825.00/3.5TL750197019000*12150425*325
3425.00/3.5TL750197021200*13200525*400
16/70-201413.00TT/TL41010755150*2900430*350
16/70-241413.00TT/TL41011755600*3350450*350
