26x12.00-12 29x12.5-15 31x15.5-15
Features:
Suitable Conditions:
Suitable for implement machinery, orchard harvesters and trenchers
Description

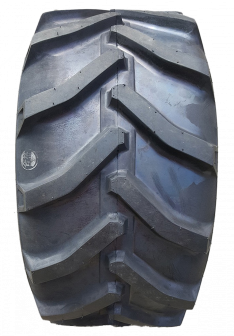

Trencher Tire Featuring a large contact area providing best traction,
It is very suitable for applications on wet and dry surfaces.
Data table
| 规格 SIZE | 层级 PR | 类型 TYPE | 花纹深度 T.D.(mm) | 标准轮辋 Std. Rim | 负 荷 Max Load | 气 压 Inflation Pressure | 速度Speed (mph) | 断面宽S.W.(mm) | 外直径O.D.(mm) | ||
| （lbs) | (kg) | (psi) | (kPa) | ||||||||
| 26X12.00-12 | 8 | TL | 19 | 10.5 | 3020 | 1370 | 51 | 350 | 5 | 309 | 670 |
| 29X12.5-15 | 8 | TL | 21.5 | 10 | 4300 | 1950 | 46 | 320 | 5 | 325 | 770 |
| 31X15.5-15 | 8 | TL | 19 | 13 | 4365 | 1980 | 45 | 310 | 5 | 402 | 802 |
