5.00-12 6.00-12 6.00-16 7.50-16 4.00-12 4.00-16 4.00-19 4.50-16 5.00-15 5.00-16 5.50-16 6.00-16 6.00-19 6.50-16 6.50-20 7.50-16 7.50-18 7.50-20 10.00-16 11.00-16
Features:
Suitable Conditions:
Suitable for Tractor front for Field operation and regular transportation

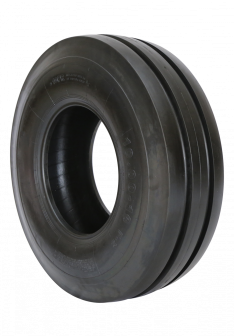

Description
Ideal for use on tractor front for field operations and regular transportation.

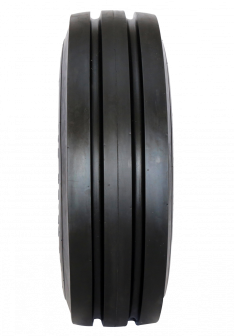

Self-cleaning tread for positive steering.
Sturdy shoulder bard offers excellent sidewall protection.
Wide tread area guarantees longer life.
Data table
| Size | Ply-rating | Rim | Tube Type | S.W.(mm) | O.D.(mm) | Max.Load(kg) 30km/h | Inflation Pressure(kpa) 30km/h |
| 4.00-12 | 4 | 3.00 D | TT | 112 | 535 | 250 | 340 |
| 4.00-16 | 4 | 3.00 D | TT | 112 | - | 325 | 340 |
| 4.00-19 | 4 | 3 D | TT | 115 | 715 | 355 | 340 |
| 4.50-16 | 4 | 3 D | TT | 122 | 655 | 365 | 310 |
| 5.00-15 | 6 | 4 E | TT | 142 | 655 | 460 | 380 |
| 5.00-16 | 4 | 4 D | TT | 140 | 680 | 400 | 280 |
| 6 | 4 D | TT | 680 | 500 | 420 | ||
| 5.50-16 | 6 | 4.00 E | TT | 158 | 720 | 530 | 370 |
| 6.00-16 | 8 | 4.50 E | TT | 170 | 740 | 670 | 450 |
| 6.00-19 | 6 | 4.50 E | TT | 167 | 815 | 650 | 330 |
| 6.50-16 | 6 | 4.50 E | TT | 180 | 765 | 615 | 310 |
| 8 | 4.50 E | TT | 765 | 710 | 390 | ||
| 6.50-20 | 8 | 5.00 F | TT | 180 | 865 | 730 | 310 |
| 7.50-16 | 8 | 5.50 E | TT | 205 | 805 | 875 | 370 |
| 7.50-18 | 8 | 5.50 F | TT | 207 | 860 | 950 | 370 |
| 7.50-20 | 6 | 5.50 F | TT | 2058 | 915 | 875 | 280 |
| 8 | 5.50 F | TT | 205 | 915 | 1000 | 340 | |
| 10.00-16 | 10 | W 8 | TT | 275 | 900 | 1360 | 340 |
| 11.00-16 | 8 | W 8 | TT | 320 | 970 | 1320 | 250 |
