15.0/55-17 (380/55-17) 19.0/45-17 (480/55-17) 500/50-17 400/60-15.5
Features:
Suitable Conditions:
Develop for soil tillage, transport and hay harvesting applications with implement machinery, trailers and hay harvesters/balers
Description

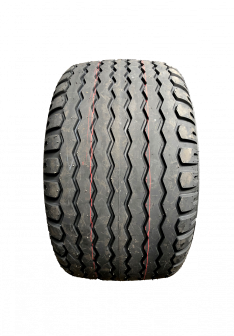

Popular tread developed for implements and trailers in soil tillage and transport applications
Ideal for modern farming under all conditions and suitable for a wide range of applications
The construction ensures good stability in the field and on the road
Tough casing construction offers special resistance to damage from impact
Data table
| Size | Generic models | PR | Tread Pattern | Tube Type | Rim Size | Inflated Dimensions(mm) | Max Load(kg) | Inflation Pressure(kpa) | ||
| Section Width | Overall Diameter | 30km/h | 40km/h | |||||||
| 15.0/55-17 | 380/55-17 | 14 | IMP05 | TL | W13*17 | 391 | 848 | 2885 | 2575 | 360 |
| 16 | 3250 | 2900 | 410 | |||||||
| 18 | 3640 | 3250 | 460 | |||||||
| 19.0/45-17 | 480/55-17 | 14 | IMP05 | TL | W16*17 | 490 | 863 | 3130 | 2800 | 280 |
| 16 | 3440 | 3075 | 310 | |||||||
| 18 | 3600 | 3250 | 340 | |||||||
| 500/50-17 | 14 | IMP05 | TL | W16*17 | 500 | 933 | 3650 | 3250 | 360 | |
| 16 | 4080 | 3650 | 400 | |||||||
| 18 | 4480 | 4000 | 440 | |||||||
| 400/60-15.5 | 14 | IMP05 | TL | AG13.00*15.5 | 400 | 945 | 2725 | 2240 | 490 | |
