9.00-20 10.00-2- 11.00-20 12.00-20 12.00-24
Features:
Suitable Conditions:
Strong tire body design fro heavy duty truck use.
Description

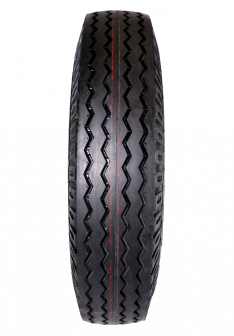

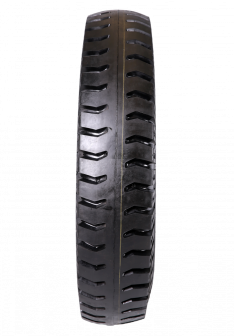

Special Rib & Lug design.
Strong tire body design fro heavy duty truck use.
Wear-resistant,anti-cracking,fast heat dissipation.
Data table
| Size | PR | T.D. | Load Index | S.R. | S.W. | O.D. | Max Loading (kg) | Pressure (kpa) | ||
| (mm) | (mm) | (mm) | Dual | Single | Dual | Single | ||||
| 12.00-20 | 20 | 18 | 151/156 | 8.5 | 315 | 1125 | 3450 | 4000 | 810 | 880 |
| 11.00-20 | 18 | 16 | 148/153 | 8 | 293 | 1085 | 3150 | 3650 | 840 | 910 |
| 10.00-20 | 18 | 15 | 145/150 | 7.5 | 278 | 1055 | 2900 | 3350 | 810 | 880 |
| 9.00-20 | 16 | 15 | 140/145 | 7.5 | 259 | 1018 | 2255 | 2575 | ||
| 8.25-20 | 16 | 14 | 135/139 | 6.5 | 235 | 974 | 2180 | 2460 | 840 | 910 |
| 7.50-20 | 14 | 14 | 126/130 | 6 | 215 | 935 | 1655 | 1885 | 740 | 810 |
| 7.00-20 | 14 | 12 | 123/127 | 5.5 | 200 | 904 | 1550 | 1750 | 770 | 840 |
| 9.00-16 | 16 | 16 | 129/134 | 6.50H | 255 | 890 | 1850 | 2120 | 730 | |
| 8.25-16 | 16 | 14 | 124/128 | 6.50H | 235 | 855 | 1600 | 1800 | ||
| 7.50-16 | 14 | 11 | 118/122 | 6.00G | 215 | 805 | 1320 | 1500 | ||
| 7.00-16 | 14 | 11 | 114/118 | 5.50F | 200 | 775 | 1180 | 1320 | ||
| 6.50-16 | 12 | 10 | 105/110 | 5.50F | 185 | 750 | 925 | 1060 | 630 | |
| 7.00-15 | 12 | 11 | 109/113 | 5.50F | 200 | 750 | 1030 | 1150 | ||
| 6.50-15 | 10 | 10 | 101/106 | 4.50E | 180 | 730 | 825 | 950 | 530 | |
| 6.00-15 | 10 | 11.5 | 97/101 | 4.50E | 170 | 705 | 730 | 825 | ||
| 6.00-14 | 10 | 11.5 | 96/100 | 4½J | 170 | 680 | 710 | 800 | ||
| 6.00-13 | 8 | 11.5 | 89/93 | 4½J | 170 | 655 | 580 | 650 | 420 | |
