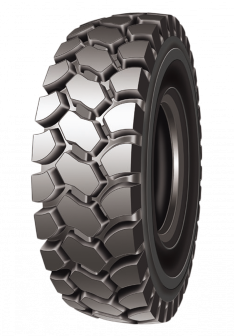

E-4 Rigid Dump Truck Tyre

14.00R24 14.00R25 18.00R25 18.00R33 21.00R35 24.00R35

Features:

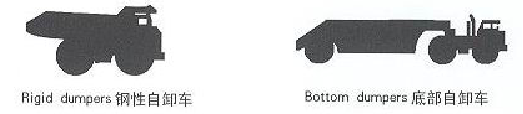

Suitable Conditions:

suitbale for dump loaders

Description

Reduced wheel spin in bad condiotions; Good traction; Special abrasion resitance; Excellent resistance to damage; Suitable for dump loaders.

Data table

轮胎规格 Tire Size	星级强度 Star Rating	符合指数 Load Index	花纹代码 Tra Code	花纹深度 Tread Depth(mm)	有无内胎 Type	标准轮辋 Standard Rim (Width&Flange)	新胎充气外缘尺寸(mm)		最大负荷 Max.Load(kg)	标准气压 Standard Pressure(bar)	最高速度 Max.Speed (km/h)
轮胎规格 Tire Size	星级强度 Star Rating	符合指数 Load Index	花纹代码 Tra Code	花纹深度 Tread Depth(mm)	有无内胎 Type	标准轮辋 Standard Rim (Width&Flange)	外直径 Diameter	断面宽 Section Width	最大负荷 Max.Load(kg)	标准气压 Standard Pressure(bar)	最高速度 Max.Speed (km/h)
14.00R24	☆☆☆	168	E-4R	38	TT	10.0	1418	383	6050	8	50
14.00R25	☆☆☆	168	E-4R	38	TL	10.00/1.5	1418	383	6050	8	50
18.00R25	☆☆	185	E-4R	47	TL	13.00/2.5	1673	498	9250	7	50
18.00R33	☆☆	191	E-4R	54	TL	13.00/2.5	1877	498	10900	7	50
21.00R35	☆☆	201	E-4R	61	TL	15.00/3.0	2052	572	14500	7	50
24.00R35	☆☆	209	E-4R	68	TL	17.00/3.5	2175	653	18500	7	50
