E-2 Mobile Crane Tyre

14.00R24 (385/95R24) 14.00R25 (385/95R25) 16.00R25 (445/95R25) 17.5R25 (445/80R25) 20.5R25 (525/80R25) 18.00R25 (505/95R25)

    Features:

  • Heat resistance
  • High Speed durability
  • Reduced rubber tension

Suitable Conditions:

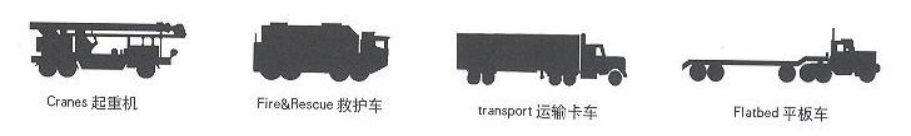

E2 tyres for crane,fire and resure ,flatbeds machines

Description

High-speed capability;Exceptional operate comfort;Intermediate transverse block pan;Long tyre life;Good traction;Suitable for cranes.

Data table

轮胎规格
Tire Size
星级强度
Star Rating
符合指数
Load Index
花纹代码
Tra Code
花纹深度
Tread Depth(mm)
有无内胎
Type
标准轮辋
Standard Rim                (Width&Flange)
新胎充气外缘尺寸(mm)最大负荷
Max.Load(kg)
标准气压
Standard Pressure(bar)
最高速度
Max.Speed (km/h)
外直径 Diameter断面宽 Section Width
14.00R24 (385/95R24)☆☆☆170E-223 TL10.00W1356 382 60001070
14.00R25 (385/95R25)☆☆☆170E-223 TL10.00/1.51356 382 60001070
16.00R25 (445/95R25)☆☆☆174E-228 TL11.25/2.01493 432 67001080
17.5R25 (445/80R25)☆☆☆170E-228 TL14.00/1.51348 445 60001070
20.5R25 (525/80R25)☆☆☆179E-231 TL17.00/2.01490 521 77501070
18.00R25 (505/95R25)☆☆☆186E-228 TL13.00/2.51615 498 95001070
