14.9-24 16.9-24 16.9-28 16.9-30 18.4-24 18.4-26 18.4-28 18.4-30 17.5L-24 19.5L-24 21L-24 21L-28
Features:
Suitable Conditions:

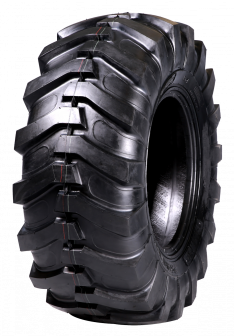

Design for digging and loading operations as well as municipality and maintance application with tractor and backhoe loaders.
Description
Design for digging and loading operations as well as municipality and maintance application with tractor and backhoe loaders.
EXTRA HEAVY CASING-Provides increased durability and provides extended service life.
STEPPED REINFORCED LUGS-Provides excellent stability and self cleaning.
Data table
| Size | Ply-rating | Rim | Tube Type | S.W.(mm) | O.D.(mm) | Max.Load(kg)40km/h | Inflation Pressure(kpa)40km/h |
| 14.9-24 | 12 | W13-24 | TL | 378 | 1265 | 2900 | 290 |
| 16.9-24 | 12 | W15L-24 | TL | 430 | 1335 | 3250 | 260 |
| 16.9-28 | 12 | W14L-28 | TL | 430 | 1435 | 3450 | 260 |
| 16.9-30 | 12 | DW15L | TL | 440 | 1470 | 3650 | 255 |
| 18.4-24 | 12 | W16L-24 | TL | 467 | 1374 | 3750 | 250 |
| 18.4-26 | 12 | W16L-24 | TL | 467 | 1426 | 3875 | 250 |
| 18.4-28 | 12 | W16L-28 | TL | 467 | 1477 | 4000 | 250 |
| 18.4-30 | 12 | DW16L | TL | 467 | 1510 | 4125 | 250 |
| 17.5L-24 | 12 | W15L-24 | TL | 445 | 1245 | 3170 | 260 |
| 19.5L-24 | 12 | W16L-24 | TL | 495 | 1314 | 3450 | 230 |
| 21L-24 | 12 | DW18A-24 | TL | 553 | 1378 | 3875 | 220 |
| 21L-28 | 12 | W18L-28 | TL | 550 | 1530 | 4000 | 210 |
