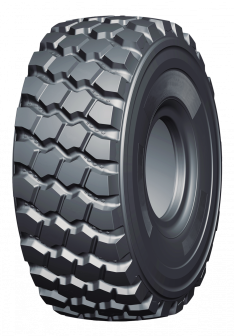

E-4 Articular Dumper Truck Tyre

23.5R25 26.5R25 29.5R25 29.5R29 16.00R25

Features:

Suitable Conditions:

Suitable for Articular Dumper Truck

Description

Special tread depth; Superior riding comfort.

Heat resistance for high speed amd cut resistance.

Good penetrate resistance for Articular Dumper Trucks.

Data table

轮胎规格 Tire Size	星级强度 Star Rating	符合指数 Load Index	花纹代码 Tra Code	花纹深度 Tread Depth(mm)	有无内胎 Type	标准轮辋 Standard Rim (Width&Flange)	新胎充气外缘尺寸(mm)		最大负荷 Max.Load(kg)	标准气压 Standard Pressure(bar)	最高速度 Max.Speed (km/h)
轮胎规格 Tire Size	星级强度 Star Rating	符合指数 Load Index	花纹代码 Tra Code	花纹深度 Tread Depth(mm)	有无内胎 Type	标准轮辋 Standard Rim (Width&Flange)	外直径 Diameter	断面宽 Section Width	最大负荷 Max.Load(kg)	标准气压 Standard Pressure(bar)	最高速度 Max.Speed (km/h)
23.5R25	☆☆	185	E-4	48.0	TL	19.50/2.5	1673	597	9250	5.25	50
26.5R25	☆☆	193	E-4	52	TL	22.00/3.0	1798	673	11500	5.25	50
29.5R25	☆☆	200	E-4	57	TL	25.00/3.5	1921	750	14000	5.25	50
29.5R29	☆☆	202	E-4	57	TL	25.00/3.5	2023	750	15000	5.25	50
16.00R25	☆☆	177	E-4	46	TL	11.25/2.0	1532	448	7300	7	50
