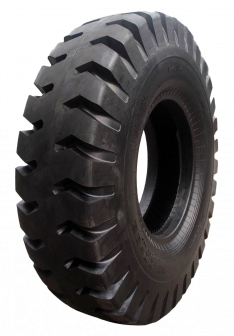

Rigid Dump truck Tyre

Description

Special compound and design suitable for scraper,heavy dump truck operating on relatively taugh road surface like mining area,tunnel,quarry,construction site.

Deep tread pattern and wide riding area provide good cutting and wear resistance ,improve ride properties on gravel road,rge the tire has long service life.

Data table

Size	Ply-rating	Rim	Tube Type	S.W.(mm)	O.D.(mm)	Max.Load(kg) 40km/h	Inflation Pressure(kpa) 40km/h
18.00-33	32	13.00/2.5	TL	500	1820	17500*10000	750*575
	36	13.00/2.5	TL	500	1820	18500*10600	825*625
	42	13.00/2.5	TL	500	1820	20000*11500	975*725
	44	13.00/2.5	TL	500	1820	21000*12100	1050*775
21.00-25	28	15.00	TL	570	1800	16500*9500	575*425
	32	15.00	TL	570	1800	17500*10300	650*500
	36	15.00	TL	570	1800	19000*11020	725*575
	40	15.00	TL	570	1800	20600*11950	825*650
21.00-33	42	15.00	TL	570	1955	22400*12400	775*625
21.00-33	54	15.00	TL	570	1955	32500*14200	875*725
21.00-35	36	15.00/3.0	TL	570	2005	23000*12850	750*550
	40	15.00/3.0	TL	570	2005	24300*14000	825*625
	44	15.00/3.0	TL	570	2005	25000*14500	990*675
24.00-29	30	17.00	TL	655	1975	21800*12500	525*400
	36	17.00	TL	655	1975	24600*14000	625*475
	42	17.00	TL	655	1975	27400*15900	725*550
	48	17.00	TL	655	1975	30200*16400	825*625
24.00-35	42	15.00/3.0	TL	653	2130	29000*16500	750*550
24.00-35	48	15.00/3.0	TL	653	2130	31500*18500	850*650
33.5-33	32	28.00/4.0	TL	850	2240	25750*16500	425*325
	38	28.00/4.0	TL	850	2240	29000*18500	525*400
	44	28.00/4.0	TL	850	2240	32300*19800	625*475
33.25-35	32	27.00/3.5	TL	845	2240	25750*16000	450*325
	38	27.00/3.5	TL	845	2240	28000*18000	550*400
	44	27.00/3.5	TL	845	2240	32300*19800	625*475
37.25-35	36	31.00/4.0	TL	945	2390	30750*19500	450*325
37.25-35	42	31.00/4.0	TL	945	2390	33500*21800	525*400
37.5-33	36	32.00/4.5	TL	950	2390	31500*20000	450*325
37.5-33	42	32.00/4.5	TL	950	2390	34500*22400	525*400
33.25-29	26	27.00/3.5	TL	845	2090	20600*13600	350*275
33.25-29	32	27.00/3.5	TL	845	2090	23600*15000	450*325
